Introduction
This document continues from Creating Attendance Page for Sinchon Union Algorithm Camp - Setting Up Development Environment. It summarizes the process of creating a database for attendance management at Sinchon Union, setting up a server connected to it, and deploying it to the network. A domain will also be linked.
While there is a method to create a separate database like Google Cloud SQL and connect it with the server, this time we will use a method where the database and server are on the same virtual machine. We will first ensure that it runs, and later consider backup and database isolation solutions.
1. Configuring the Virtual Machine
Reference was made to Comprehensive Guide to Deploying Springboot with Docker+GCP (Try using GCP VM, Cloud SQL instead of AWS EC2, RDS).
1.1. Creating Project and Virtual Machine

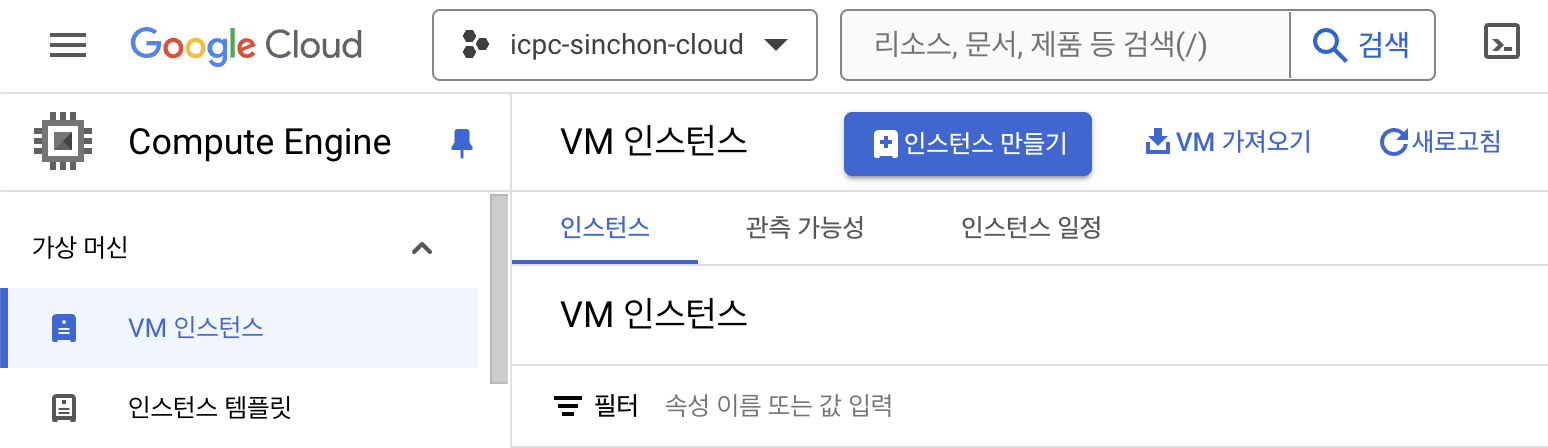

First, visit Google Cloud Platform and create a project. Once the project is created, the console will appear, where a virtual machine can be created under the Compute Engine - VM instances menu.
Set the boot disk to Ubuntu 20.04 LTS x86_64. For security purposes, click the default item in the network interface and set the external IP address of the alias IP range to none. Although it is possible to create the cheapest e2-micro instance, it is better to create an e2-medium instance with more memory for deployment, so I opted for somewhat higher spending.
1.2. Configuring External IP Address
The external IP address can be set through static IP reservation as explained in the link above. You can reserve an external IP address under the VPC Network - IP address menu in the left sidebar of the console.
I naturally reserved an IP address in the Seoul region (asia-northeast3). This IP address will later be linked to the domain.
The other settings are default. The standard service tier and IPv4 for the IP version. Also, when configuring the IP address, don't forget to set the target to the virtual machine instance, which can be set below the region configuration.
1.3. Configuring the Firewall
In the VPC Network - Firewall menu, you need to open the ports for external access. I opened port 8080 as mentioned in the reference link above. More detailed screenshots can be found in Creating a Web Server with Docker on Google Cloud Platform.
Now, once the server listens on port 8080, you can access it via fixedIPAddress:8080.
2. Configuring Docker and MySQL

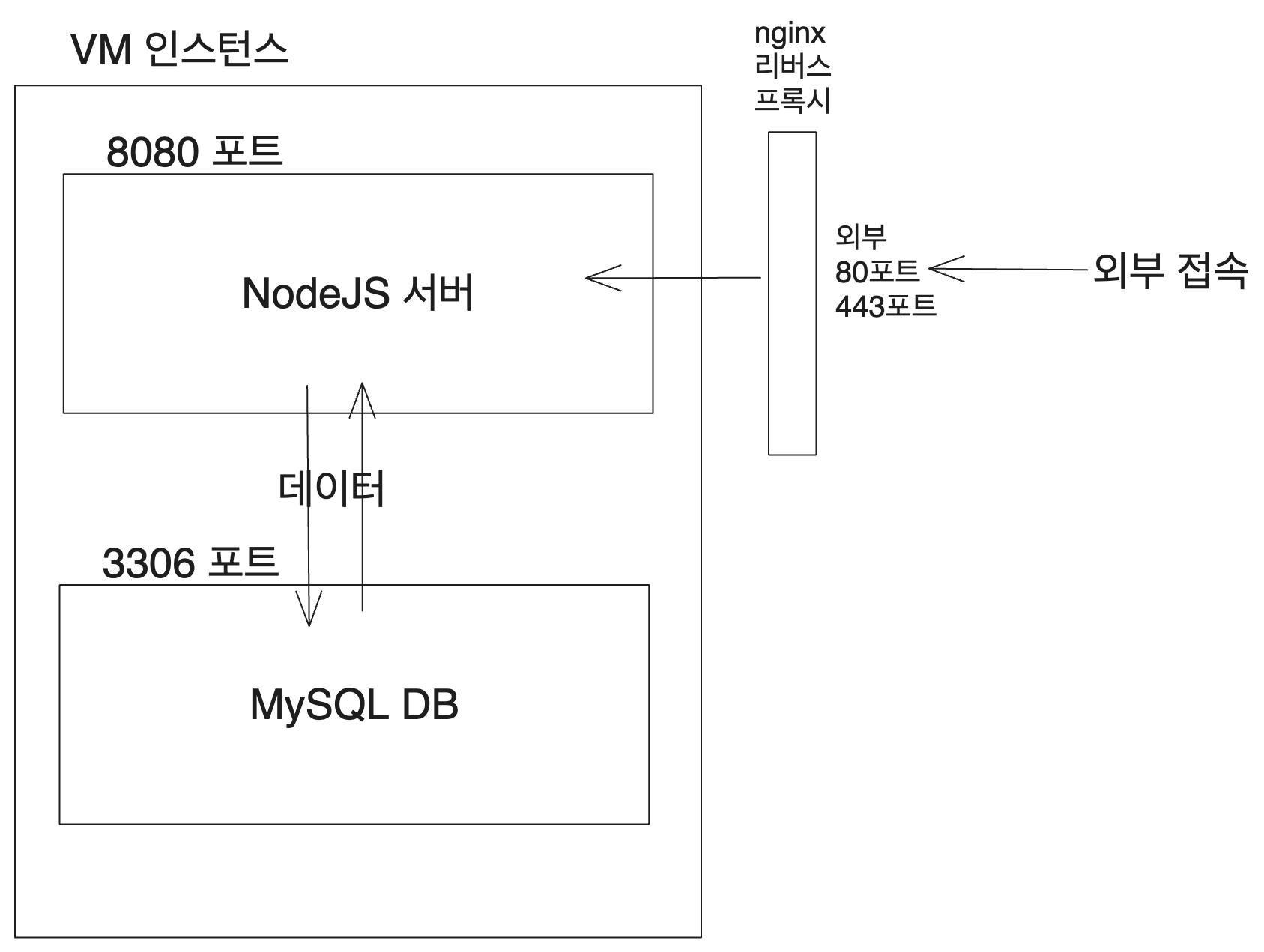

The server we aim to set up will operate as follows: MySQL is installed on port 3306 of the virtual machine, and the Node.js server is installed on port 8080. Both are contained within Docker containers. The Node.js server connects to MySQL to read and write data, and externally, nginx forwards requests coming in on port 80 to port 8080.
2.1. Installing Docker
You can install Docker on your virtual machine by referring to Installing Docker Engine on Ubuntu.

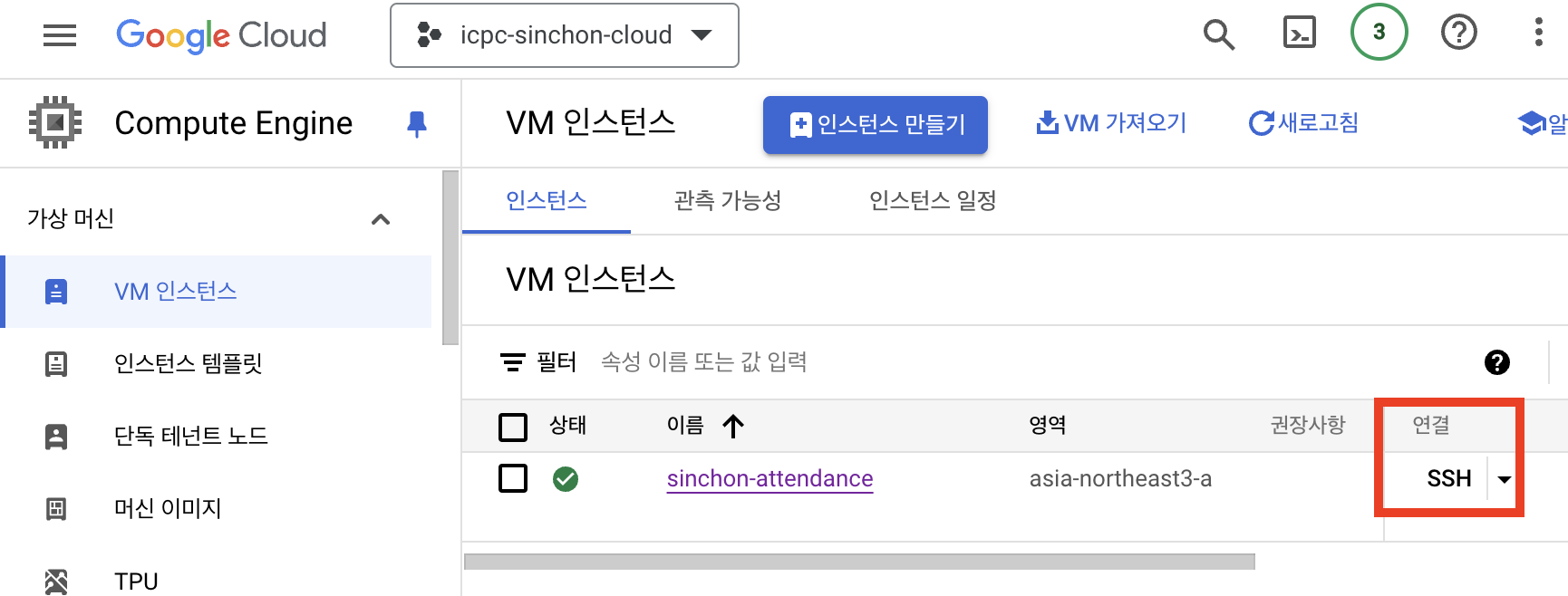

Access the virtual machine by clicking the SSH button in the Compute Engine list.
Then, follow the link to enter the commands and install Docker.
2.2. Running MySQL DB Docker Container
MySQL DB must be running for the NodeJS server to fetch data later. Let's download the MySQL image and run it by referring to Installing and Connecting to MySQL Using Docker by poiemaweb.
Since I will be downloading MySQL 8.0, enter the following command:
docker pull mysql:8.0
This command will download the MySQL 8.0 image. Next, run it as follows. The -v flag is used to specify a volume to store data, ensuring that the data remains even if the container is terminated.
docker run --name mysql-container -p 3306:3306 -v /tmp/mysql:/var/lib/mysql -e MYSQL_ROOT_PASSWORD={your_password} -d mysql
Check if the container is running by entering docker ps and accessing it. Since there is data in Korean, you need to configure the locale to use UTF-8 (using -e LC_ALL=C.UTF-8).
docker exec -e LC_ALL=C.UTF-8 -it mysql-container bash
# Enter mysql when bash is opened
mysql -u root -p
Now connect to MySQL, create a database, and create tables. Eventually, prisma will take care of this, but we want to confirm that everything is working. The data will be erased when initializing the tables with prisma later.
You can check databases and current tables by using the show databases or show tables commands. As seen with names like "김철수," this is fake data generated by ChatGPT.
CREATE DATABASE attendance_db;
USE attendance_db;
CREATE TABLE student (
id INT AUTO_INCREMENT PRIMARY KEY,
name VARCHAR(10),
school VARCHAR(10),
boj_handle VARCHAR(30),
email VARCHAR(50),
phone VARCHAR(20),
money_type VARCHAR(5),
is_invited BOOLEAN,
is_canceled BOOLEAN
);
INSERT INTO student (name, school, boj_handle, email, phone, money_type, is_invited, is_canceled)
VALUES
('김철수', '연세대학교', 'chulsoo123', '[email protected]', '010-1234-5678', '3', TRUE, FALSE),
('이영희', '서강대학교', 'younghi456', '[email protected]', '010-2345-6789', '3', FALSE, FALSE),
('박지민', '홍익대학교', 'jimin789', '[email protected]', '010-3456-7890', '6', TRUE, TRUE),
('최현우', '이화여자대학교', 'hyunwoo1011', '[email protected]', '010-4567-8901', '6', FALSE, FALSE),
('정소연', '숙명여자대학교', 'soyeon1213', '[email protected]', '010-5678-9012', '3', TRUE, FALSE);
SELECT * FROM student; -- Confirm that the data is correctly entered
3. Configuring the NodeJS Server
Since the MySQL DB is in a Docker container, let's set up a server that can retrieve it. Let's assume NodeJS is already installed.
3.1. Writing Server Code
Although a more complex DB was actually created, this document simplifies it for the deployment process. First, let's initialize the project and install prisma. Express is used for easier server configuration.
# Navigate to project folder
npm init -y
npm install express prisma @prisma/client
npx prisma init # Initialize prisma and create folder
Open the generated prisma/schema.prisma file and add the Student model as follows.
datasource db {
provider = "mysql" // or whatever type of database you are using
url = env("DATABASE_URL")
}
generator client {
provider = "prisma-client-js"
}
enum School {
YONSEI
SOGANG
HONGIK
EWHA
SOOKMYUNG
}
model Student {
id Int @id @default(autoincrement())
name String @db.VarChar(50)
bojHandle String @db.VarChar(50) @unique
email String
phone String @db.VarChar(20)
school School @default(SOGANG)
studentNumber String @db.VarChar(20) // Student number
}
Then, set the DATABASE_URL environment variable in the .env file by referencing the Connection URLs Documentation of Prisma.
Next, run prisma migrate and generate the client.
npx prisma migrate dev --name init
npx prisma generate
npm install @prisma/client
Now let's create the NodeJS server. Create an index.js file and write the following code.
const express = require('express');
const { PrismaClient } = require('@prisma/client');
const prisma = new PrismaClient();
const app = express();
app.get('/', async (req, res) => {
const students = await prisma.student.findMany();
res.json(students);
});
app.listen(8080, () => {
console.log('Server is running on http://localhost:8080');
});
Set the start and dev scripts in package.json as follows. The dev script uses nodemon to automatically restart the server. You need to install it using npm install --save-dev nodemon, but you can also use node if you prefer.
"scripts": {
"start": "node index.js",
"dev": "nodemon index.js"
}
3.2. Building the Server Docker Container
Reference materials include [Docker] Building a Server with Docker.
Now let's put the NodeJS server into a Docker container. First, create a Dockerfile for building the Docker container. The DATABASE_URL variable is set because prisma uses it to generate the client. We need to use the --build-arg option when running docker build.
# Set up based on the official Node.js image
FROM node:20
ARG DATABASE_URL
ENV DATABASE_URL=$DATABASE_URL
# Create app directory
WORKDIR /usr/src/app
# Add app source
COPY . .
# Install application dependencies
# Copy package.json and package-lock.json
COPY package*.json /usr/src/app
RUN npm install
# Install Prisma CLI and run prisma generate
RUN npx prisma generate
# Expose port used by the app
EXPOSE 8080
# Command to run when the container starts
CMD ["npm", "start"]
Now, perform the build locally. I have simply named it nodeapp for testing since I plan to use docker-compose later.
docker build --build-arg DATABASE_URL=${DATABASE_URL} -t nodeapp .
# Check if the docker image was created correctly
docker images
To run it, execute docker run -p 8080:8080 nodeapp. Now you should be able to confirm that the server is running by accessing localhost:8080.
If it doesn't work, you might encounter an error indicating that the prisma files are missing. In that case, add a line to copy the prisma folder in the Dockerfile.
# Copy Prisma schema file
COPY prisma /usr/src/app/prisma
3.3. Pushing the Server Docker Container
Since we will need to fetch and run this from the virtual machine later, we must upload the Docker image somewhere. This can be done using Docker Hub or GitHub Container Registry. I will use the GitHub Container Registry. Reference Sharing Docker Images via GitHub | Packages Container Registry.
In this link, you need to create a Personal Access Token to upload images to GitHub. Follow Working with the Container registry to create and copy the Personal Access Token, then set it as an environment variable.
export CR_PAT=YOUR_TOKEN
Next, upload the built image to the GitHub Container Registry as follows.
# Login
echo $CR_PAT | docker login ghcr.io -u witch-factory --password-stdin
# Push image
docker tag nodeapp ghcr.io/icpc-sinchon/nodeapp
docker push ghcr.io/icpc-sinchon/nodeapp
The image should now be available in the GitHub Container Registry. You can then pull and run this image on the virtual machine. Accessing your VM instance's static IP:8080 should connect you to the server.
docker pull ghcr.io/icpc-sinchon/nodeapp
4. Automating with Github Action and Docker Compose
However, rebuilding the Docker image and pulling it to the virtual machine each time I make changes to the server is cumbersome. Let's automate this using Github Actions.
4.1. Github Action
First, create a service account to integrate GitHub Actions with GCP.
You can refer to the 'Creating and Registering a Service Account for GitHub Actions' section in Practicing CI/CD with GitHub Actions with GCP - Execution Version. The official repository from Google at Google's Official GitHub Actions Repository also explains how to create a service account key.
According to the official repository's description, there is a method using workload identity federation. You can consult How to Securely Use GCP via Workload Identity Federation (feat. AWS). However, managing the service account keys securely seems sufficient, as they can be registered in GitHub secrets.
Once the service account is created, register it in the GitHub repository secrets under the names GCE_PROJECT_ID and GCE_SERVICE_ACCOUNT_KEY. The GCE_SERVICE_ACCOUNT_KEY is simply the JSON provided as the service account key.
Now, create a deploy.yml file in the .github/workflows folder and write the following. The name indicates its role in deployment, but you can name it main.yml or ci.yml, etc.
The rest utilizes libraries provided by GitHub Actions and automates the commands executed previously. There were challenges while configuring the GitHub Action commands.
Previously, I had to generate a new Personal Token to access the GitHub registry. However, GitHub Actions provides an environment variable called GITHUB_TOKEN by default. This token is used to access the GitHub Container Registry.
The Deploy to Google Compute Engine section sends numerous commands in one line that effectively access the virtual machine and executes commands to run the necessary containers. It retrieves the MySQL 8.0 image and the server's image from the GitHub registry. If there is an existing running image, it deletes it.
Also, in order to connect to Google Compute Engine, you need to register GCE_USERNAME, GCE_INSTANCE_NAME, and GCE_INSTANCE_ZONE in the GitHub repository secrets. You can find this information by clicking on the VM instance in the Google Cloud Console.
When connecting via SSH through the browser, you can easily find your USERNAME. The format is appended as USERNAME@INSTANCE_NAME in front of the command input line. You can copy and register this directly in the repository's secrets.
name: Deploy to Google Compute Engine
on:
push:
branches:
- main
jobs:
deploy:
runs-on: ubuntu-20.04
permissions:
contents: read
packages: write
id-token: write
steps:
- name: Checkout code
uses: actions/checkout@v4
- name: Set up Docker Buildx
uses: docker/setup-buildx-action@v3
- name: Login to GitHub Container Registry
uses: docker/login-action@v3
with:
registry: ghcr.io
username: ${{ github.actor }}
password: ${{ secrets.GITHUB_TOKEN }}
- name: Set up environment variables
run: |
echo "DATABASE_URL=${{ secrets.DATABASE_URL }}" >> .env
- name: Build and push Docker images
env:
DATABASE_URL: ${{ secrets.DATABASE_URL }}
run: |
docker build \
--build-arg DATABASE_URL=${DATABASE_URL} \
-t ghcr.io/${{ github.repository }}/node-app .
docker push ghcr.io/${{ github.repository }}/node-app
- name: google auth
uses: google-github-actions/auth@v2
with:
credentials_json: ${{ secrets.GCE_SERVICE_ACCOUNT_KEY }}
- name: Setup Google Cloud SDK
uses: google-github-actions/setup-gcloud@v2
with:
version: ">= 363.0.0"
project_id: ${{ secrets.GCE_PROJECT_ID }}
- name: Deploy to Google Compute Engine
run: |
gcloud compute ssh ${{ secrets.GCE_USERNAME }}@${{ secrets.GCE_INSTANCE_NAME }} --zone ${{ secrets.GCE_INSTANCE_ZONE }} --command "\
sudo docker ps -q | xargs --no-run-if-empty docker container stop && \
sudo docker ps -a -q | xargs --no-run-if-empty docker container rm && \
sudo docker images -q mysql:8.0 | xargs --no-run-if-empty sudo docker rmi && \
sudo docker images -q ghcr.io/${{ github.repository }}/node-app | xargs --no-run-if-empty sudo docker rmi && \
sudo docker pull mysql:8.0 && \
sudo docker run --name mysql-container -p 3306:3306 -v /tmp/mysql:/var/lib/mysql -e MYSQL_ROOT_PASSWORD=${{ secrets.MYSQL_ROOT_PASSWORD }} -d mysql && \
echo ${{ secrets.GITHUB_TOKEN }} | sudo docker login ghcr.io -u ${{ github.actor }} --password-stdin && \
sudo docker pull ghcr.io/${{ github.repository }}/node-app && \
sudo docker run -p 8080:8080 -d -e DB_HOST=${{ secrets.DB_HOST }} -e DB_USER=${{ secrets.DB_USER }} -e DB_PASS=${{ secrets.DB_PASS }} -e DB_NAME=${{ secrets.DB_NAME }} -e DB_PORT=3306 ghcr.io/${{ github.repository }}/node-app"
4.2. Docker Compose
However, this process is challenging to comprehend and modify later. Additionally, launching multiple containers for local testing requires lengthy command lines. To resolve this, we will use Docker Compose.
First, create a docker-compose.yml file and write the following configuration, which allows multiple containers to be launched simultaneously.
version: "3.8"
services:
db:
image: mysql:8.0
environment:
MYSQL_ROOT_PASSWORD: ${MYSQL_ROOT_PASSWORD}
MYSQL_DATABASE: attendance_db
ports:
- "3306:3306"
volumes:
- db_data:/var/lib/mysql
app:
image: ghcr.io/icpc-sinchon/admin-service-new-backend/node-app
command: sh -c "npx prisma migrate deploy && npx prisma generate && npm run start"
ports:
- "8080:8080"
environment:
DB_HOST: db
DB_USER: {user_name}
DB_PASS: {your_password}
DB_NAME: attendance_db
DB_PORT: ${your_port}
JWT_SECRET: ${JWT_SECRET}
DATABASE_URL: ${DATABASE_URL}
depends_on:
- db
volumes:
db_data:
Now you can run docker-compose up -d locally, and both MySQL 8.0 and the Docker image for the NodeJS server will start simultaneously. Modify the GitHub Action to reflect this change. The rest of the components will remain mostly unchanged, only adjusting the Deploy to Google Compute Engine portion.
To do this, you must first install docker-compose. Follow the instructions in Running All Containers at Once with Docker Compose on Ubuntu.
Next, update the GitHub Action to transfer the docker-compose.yml, Dockerfile, and Prisma folder to the virtual machine using the scp command, and execute the Docker Compose commands upon SSH access to the virtual machine.
While the length of the script has increased, each section's role is now separated, making it easier to understand and modify. Now, updating the docker-compose.yml will automatically apply to the virtual machine. The existing container removal and recreation have been simplified to docker-compose down and docker-compose up -d.
Testing locally is easier as well; if the server image is built, simply run docker-compose up -d. The section handling environment variables has also been separated, and as with GCE_INSTANCE, new grouping for variables is possible if needed.
- name: Deploy to Google Compute Engine
env:
GCE_INSTANCE: ${{ secrets.GCE_USERNAME }}@${{ secrets.GCE_INSTANCE_NAME }}
GCE_ZONE: ${{ secrets.GCE_INSTANCE_ZONE }}
MYSQL_ROOT_PASSWORD: ${{ secrets.MYSQL_ROOT_PASSWORD }}
DATABASE_URL: ${{ secrets.DATABASE_URL }}
JWT_SECRET: ${{ secrets.JWT_SECRET }}
DB_HOST: ${{ secrets.DB_HOST }}
DB_PORT: ${{ secrets.DB_PORT }}
DB_USER: ${{ secrets.DB_USER }}
DB_PASS: ${{ secrets.DB_PASS }}
DB_NAME: ${{ secrets.DB_NAME }}
run: |
gcloud compute scp docker-compose.prod.yml ${GCE_INSTANCE}:~/docker-compose.yml --zone ${GCE_ZONE}
gcloud compute scp Dockerfile ${GCE_INSTANCE}:~/Dockerfile --zone ${GCE_ZONE}
gcloud compute scp --recurse ./prisma ${GCE_INSTANCE}:~/prisma --zone ${GCE_ZONE}
gcloud compute ssh ${GCE_INSTANCE} --zone ${GCE_ZONE} --command "
echo \"MYSQL_ROOT_PASSWORD=${MYSQL_ROOT_PASSWORD}\" > .env
echo \"DATABASE_URL=${DATABASE_URL}\" >> .env
echo \"JWT_SECRET=${JWT_SECRET}\" >> .env
echo \"DB_HOST=${DB_HOST}\" >> .env
echo \"DB_PORT=${DB_PORT}\" >> .env
echo \"DB_USER=${DB_USER}\" >> .env
echo \"DB_PASS=${DB_PASS}\" >> .env
echo \"DB_NAME=${DB_NAME}\" >> .env
sudo docker-compose down
sudo docker-compose pull
sudo docker-compose --env-file .env up -d
"
Of course, the build option exists in Docker Compose, allowing the Docker build to occur within the docker-compose.yml file, enabling execution via docker-compose up -d --build. However, doing so would lead to prisma generate being executed during both the build step and again on the virtual machine, resulting in unnecessary duplication and frequent errors.
Thus, the Docker image building portion is retained as originally commanded, while Docker Compose is exclusively utilized on the virtual machine.
5. Additional Tasks

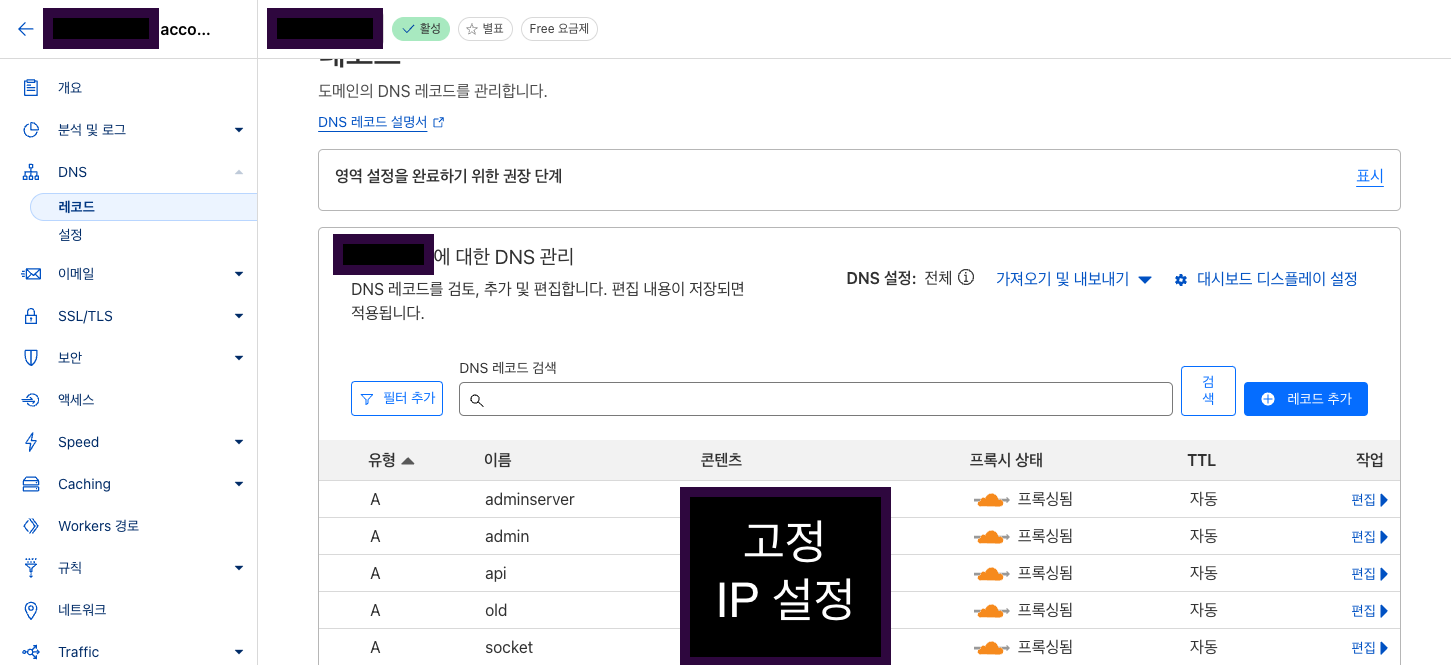

5.1. Connecting Domain with Nginx Reverse Proxy
Now that the server is deployed and accessible via virtual machine static IP:8080, it will be listening on port 8080, with firewall settings permitting access through this port.
I obtained a domain through Cloudflare. Let's connect to it. Since a static IP is already available, it can be linked as an A record. Go to the Cloudflare dashboard, navigate to the specific domain detail page, and select DNS from the sidebar. Then, add an A record under the DNS management tab.
I intended to use the api subdomain, so I connected it to that subdomain, but if you want to connect to the root of a domain, you can set it to @. Additional details concerning subdomain setup can be found in My Journey to Adding a Page as a Subdomain to My Domain.
However, the issue arises because linking it via A record will direct all traffic to either port 80 or 443, while we only have port 8080 open. To resolve this, we will use Nginx as a reverse proxy. Although a Cloudflare enterprise plan might allow for port redirects, I unfortunately do not have access to such a plan.
SSH into the virtual machine (available via Google Cloud Console) and install Nginx initially.
sudo apt update
sudo apt install nginx
Next, create the Nginx configuration file.
sudo nano /etc/nginx/sites-available/your_domain
Write the configuration as follows, where server_name is your connected domain, and proxy_pass is the server's address we are forwarding to, which would be the virtual machine's static IP and port 8080.
server {
listen 80;
server_name api.suapc.kr;
location / {
proxy_pass http://localhost:8080;
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection 'upgrade';
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_cache_bypass $http_upgrade;
}
}
After saving the file, create a symbolic link and restart Nginx.
# Create a symbolic link
sudo ln -s /etc/nginx/sites-available/api.suapc.kr /etc/nginx/sites-enabled/
# Test Nginx and restart
sudo nginx -t
sudo systemctl restart nginx
If SSL/TLS is handled via Cloudflare, there's no need to install SSL certificates on the server as Cloudflare manages it, and HTTPS will be supported. Additionally, GCP's firewall rules typically permit access on ports 80 and 443 by default. However, if those ports are not open, make sure to adjust your firewall settings to allow both ports for all IPs (0.0.0.0/0).
5.2. Cleaning Up Docker Images

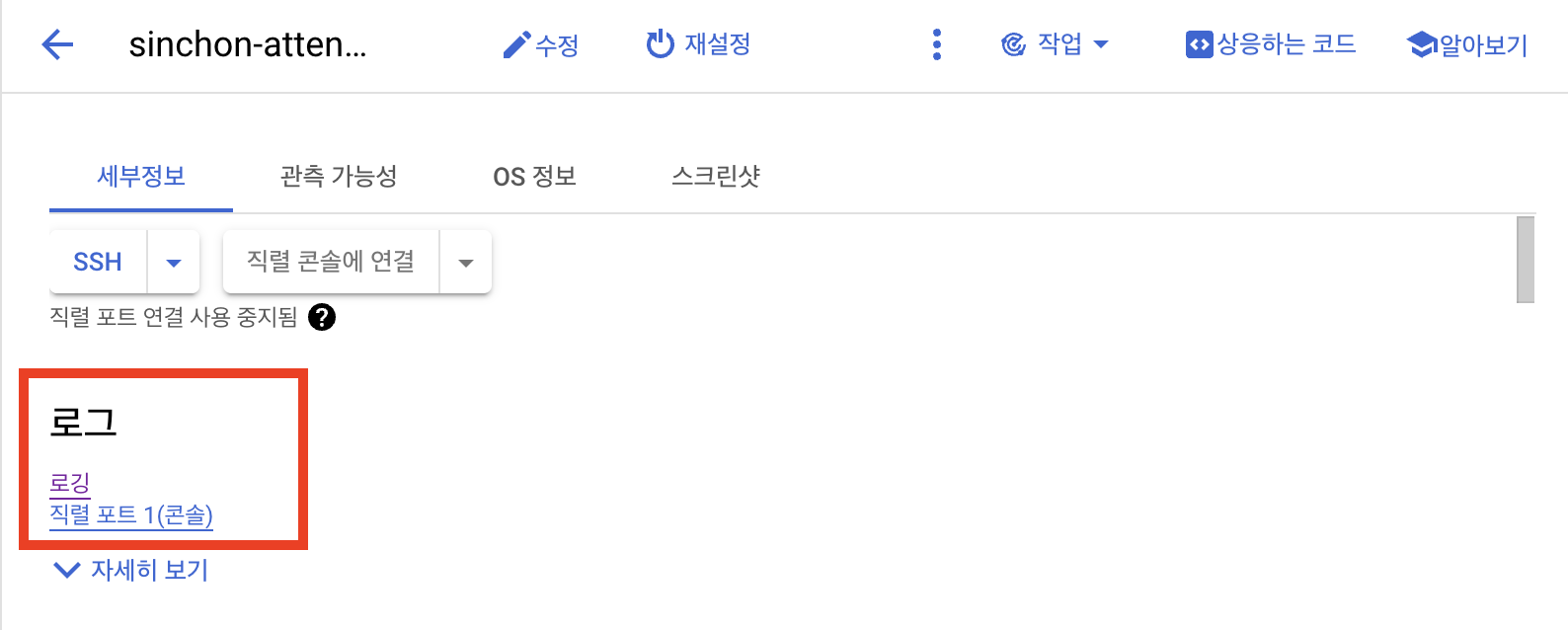

During the development and deployment process, one day I encountered an issue where SSH access to the VM instance was not possible. I searched for the problem and checked the logs on the Google Cloud VM instances page.
The problem was that the instance's storage was full, preventing SSH access. It turned out that the issue stemmed from accumulating Docker images during builds. To resolve this, first increase the VM instance's capacity to regain access and then clean up the Docker images.
You can follow Lee Sang-hyup's Guide on Increasing GCP Google Cloud Boot Disk Size for the steps. Alternatively, refer to Official Google Cloud Documentation on Increasing Persistent Disk Size.
After gaining access, modify the deployment deploy.yml file to execute the docker system prune -af command on the virtual machine. This command will delete unused images, containers, volumes, and networks.
In the command executed via gcloud compute ssh, simply add docker system prune -af before docker-compose down.
- name: Deploy to Google Compute Engine
run: |
gcloud compute ssh ${{ secrets.GCE_USERNAME }}@${{ secrets.GCE_INSTANCE_NAME }} --zone ${{ secrets.GCE_INSTANCE_ZONE }} --command "\
... omitted ...
sudo docker system prune -af && \
sudo docker-compose down && \
sudo docker-compose pull && \
sudo docker-compose --env-file .env up -d"
5.3. Backing Up with Snapshots
However, the current state is not safe. If the virtual machine were to fail completely or if there were issues in the DB volume area, all data would be lost.
While most cloud services offer functionality to create cloud databases and Google Cloud Platform provides Cloud SQL, these services often incur costs. Moreover, given the nature of the data being stored on the server, real-time backups are not critically necessary. So, rather than establishing a new DB instance that incurs costs, I opted for a method of securing minimal safety by taking daily snapshots of the virtual machine.
You can refer to Creating Scheduled Disk Snapshots to set up snapshot schedules in the Google Compute Engine's Storage menu, linking them to the disks used by the virtual machine.

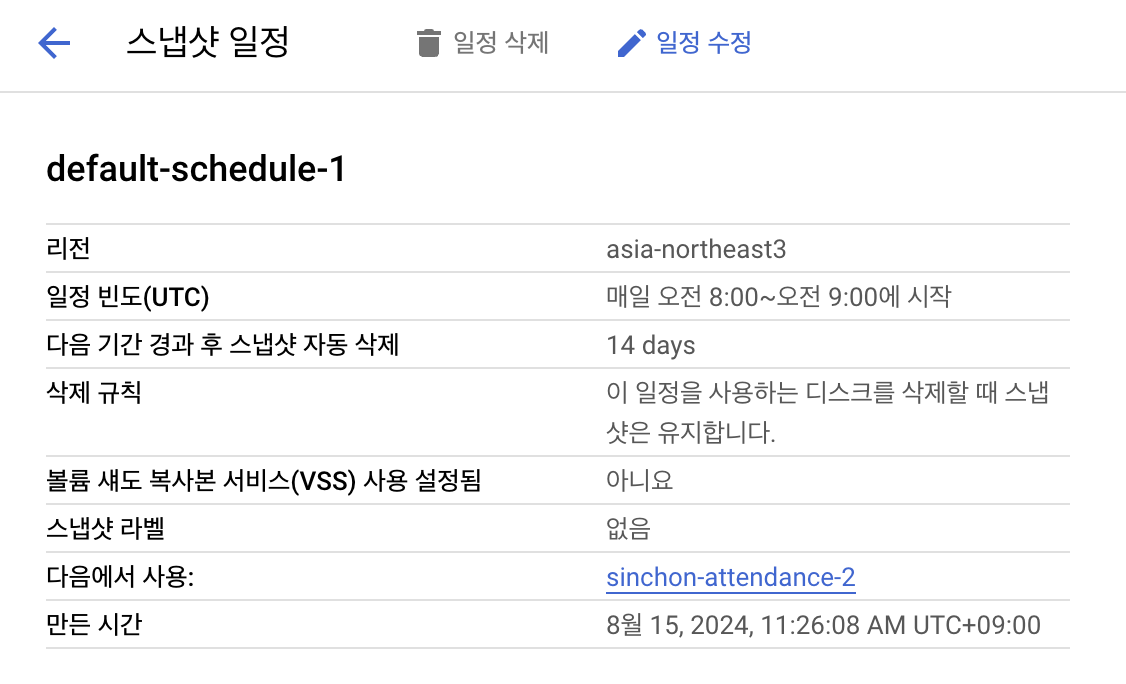

I created a simple schedule named default-schedule-1 to take snapshots every morning and connected it to the boot disk. This allows you to view snapshot schedules in the VM instance's boot disk, or check within the Storage - Snapshots menu.
References
Comprehensive Guide to Deploying Springboot with Docker+GCP (Try using GCP VM, Cloud SQL instead of AWS EC2, RDS)
https://choo.oopy.io/5c999170-dde5-4418-addc-00a0d263287c
Creating a Web Server with Docker on Google Cloud Platform
https://kibbomi.tistory.com/241
Setting Up a Development/Operating Environment with Docker
https://inhibitor1217.github.io/2019/10/25/devlog-docker.html
Issues Encountered When Deploying on Google Cloud Platform via Docker Compose
https://choiblog.tistory.com/147
A GitHub Action for Installing and Configuring the gcloud CLI
https://github.com/google-github-actions/setup-gcloud
Understanding and Utilizing the Concept of Volumes
https://formulous.tistory.com/17
Deleting Containers Prior to Pulling
Deploying to Google App Engine in 15 Minutes with GitHub Actions
Practicing CI/CD with GitHub Actions with GCP - Execution Part
https://minkukjo.github.io/devops/2020/08/29/Infra-23/
Sharing Docker Images via GitHub | Packages Container Registry
Publishing and Installing a Package with GitHub Actions
GitHub Actions (2)
https://velog.io/@greentea/GitHub-Actions-2
Learning More About SSH Connection to GCE (VM)
In the middle, I increased the default disk size of 10GB as it became insufficient. You can refer to the document on increasing persistent disk size here.
https://cloud.google.com/compute/docs/disks/resize-persistent-disk?hl=ko
Increasing Google Cloud Boot Disk Capacity
